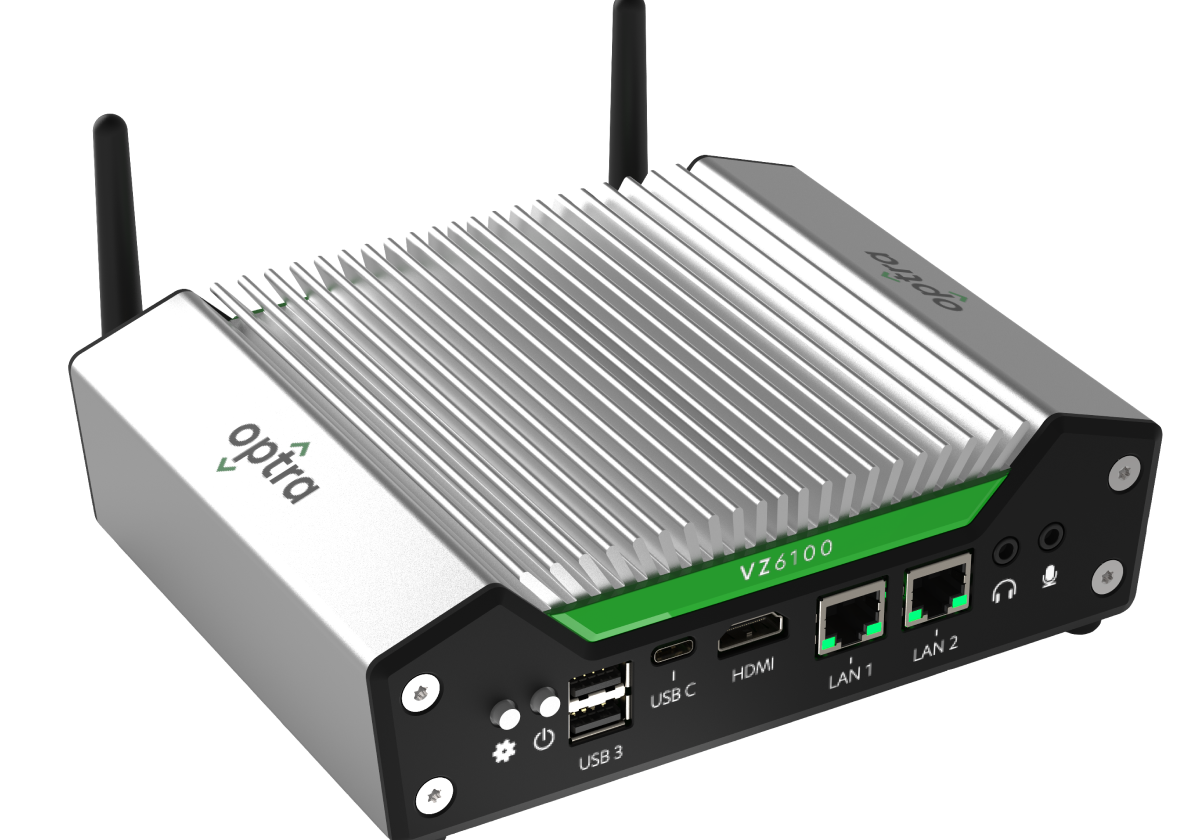

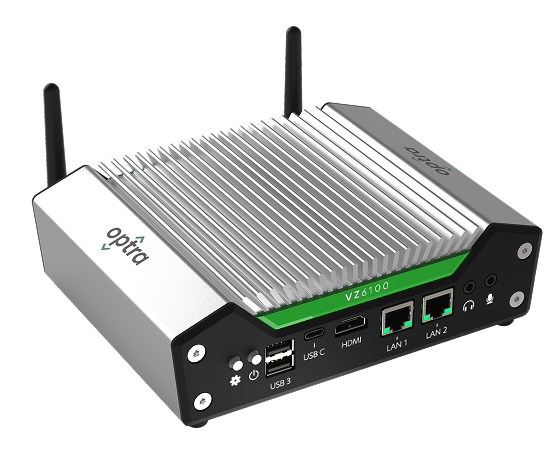

VZ6100
- NVIDIA Orin Nano GPU
- NVIDIA Jetson Orin NX
- Quad-core ARM A57 @ 1.43 GHz
- 100 TOPs (INT8)
- Performance
- 512GB Storage
- M.2 NVME
- 16GB Memory
- 128-bit LPDDR4x 51.2 GB/s

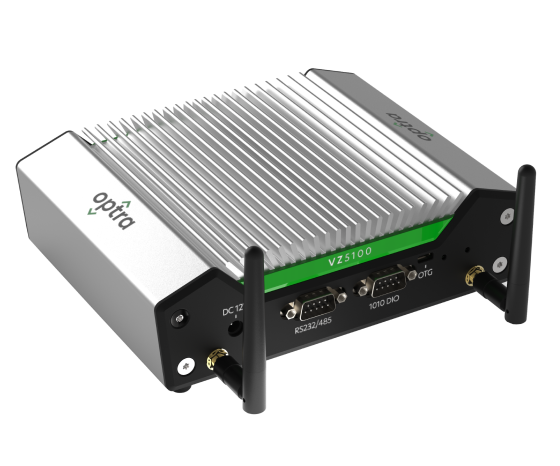

VZ5100
- NVIDIA Orin Nano GPU
- NVIDIA Jetson Orin Nano
- Quad-core ARM A57 @ 1.43 GHz
- 40 TOPs (INT8)
- Performance
- 512GB Storage
- M.2 NVME
- 8GB Memory
- 128-bit LPDDR4x 51.2 GB/s
VZ5000
- NVIDIA NX GPU
- 384-core NVIDIA Volta™ GPU
- 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU
- 21 TFLOPs (INT8)
- Performance
- 16GB Storage
- Optional M.2 SSD Expansion
- 8GB Memory
- 128-bit LPDDR4x 51.2 GB/s
Compute 2000
- ARM CPU
- Quad-Core ARM A55 (1.8Ghz)
- 1 TOPs (INT8)
- Performance
- 32GB Storage
- 4GB Memory
- 32-bit DDR4
Compute 1000
- ARM CPU
- Quad-core ARM V8 @ 1.2 GHz
- 20 GFLOPs (FP16)
- Performance
- 16GB Storage
- 2GB Memory
- 32-bit DDR4
Compute 550
- ARM CPU
- Quad-core ARM V8 @ 1.2 GHz
- 20 GFLOPs (FP16)
- Performance
- 16GB Storage
- 2GB Memory
- 32-bit DDR4
All Optra Devices Feature…
Open Embedded Linux
Secure Boot
Gigabit Ethernet
Docker Containerized Skills
and more…
Download Spec SheetOptra’s Powerful AI Capabilities
Optra’s advanced on-board CPUs and GPUs allow for powerful AI and ML applications.

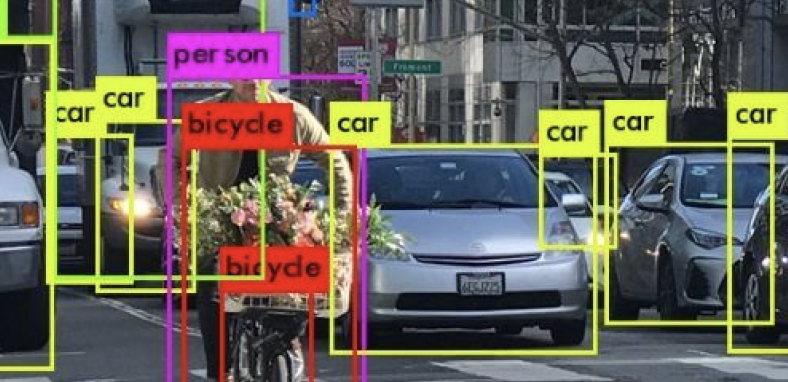

Classification
ResNet-50 • 224x224 Input
Optra CX1000
1
FPS
Optra VZ1000
37
FPS
Optra VZ5000
824
FPS
Object Detection
Tiny YOLO V3 • 414x416 Input
Optra CX1000
0.4
FPS
Optra VZ1000
48
FPS
Optra VZ5000
526
FPS

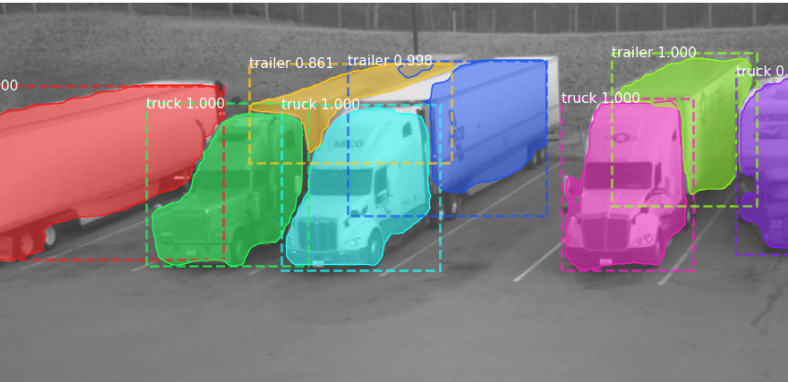

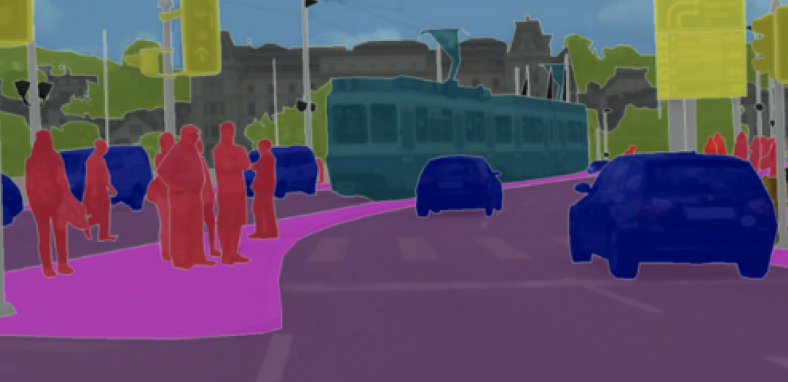

Segmentation
U-Net • 256x256 Input
Optra CX1000
N/A
Optra VZ1000
17
FPS
Optra VZ5000
146
FPS

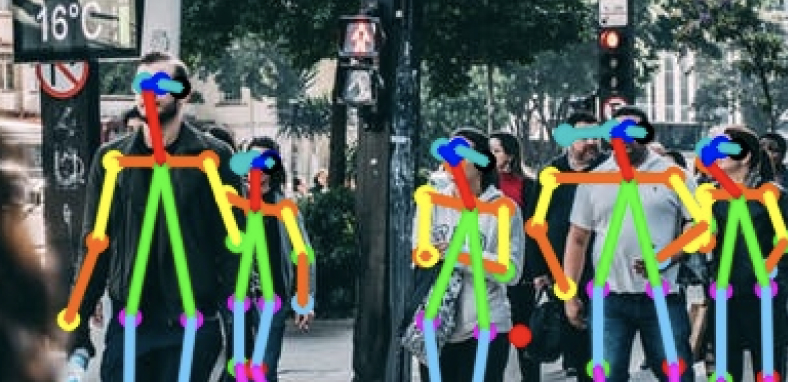

Pose Estimation
OpenPose • 256x256 Input
Optra CX1000
N/A
Optra VZ1000
15
FPS
Optra VZ5000
239
FPS
See your AI applications
through the Optra lens
Remotely provision and monitor your hardware and software from our secure portal. Update the firmware of your entire fleet with a single click of a button.
See The Portal
